| Product SKUs |
 |

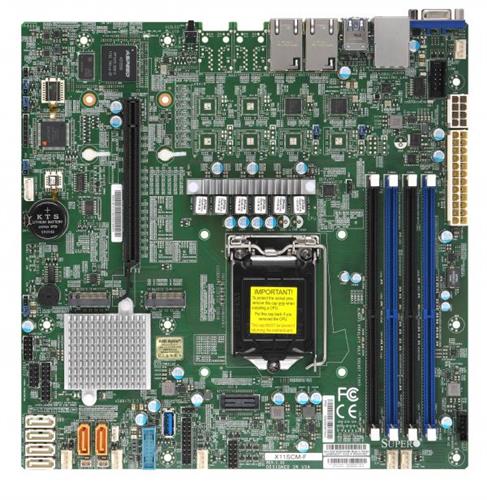

| MBD-X11SCM-F |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
| |
| Processor/Cache |
|
| CPU |
- 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series.
- Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
|
| Cores / Cache |
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| *Future support for 128GB via a BIOS update |
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with Intel® Ethernet Controller I210-AT
|
| Graphics |
|
| |
| Input / Output |
|
| SATA |
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
|
| USB |
- 4 USB 2.0 ports (2 rear + 2 headers)
- 5 USB 3.1 Gen1 ports(2 rears, 2 headers, 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
|
| M.2 |
- M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
- Form Factor: 2280/22110
- Key: M-Key
- Double Height Connector
|
| |
| System BIOS |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.0
- SMBIOS 2.7
- Plug and Play (PnP)
- RTC (Real Time Clock) Wakeup
- UEFI 2.7
- USB Keyboard support
- PCI 3.0
|
| |
| Management |
|
| Software |
- Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| System Mangement Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
|
| Power Configurations |
|
| |
| PC Health Monitoring |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
|
| FAN |
- 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
|
| LED |
- UID/Remote UID, CPU / System Overheat LED
|
| Other Features |
- ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
|
