| Product SKUs |
 |

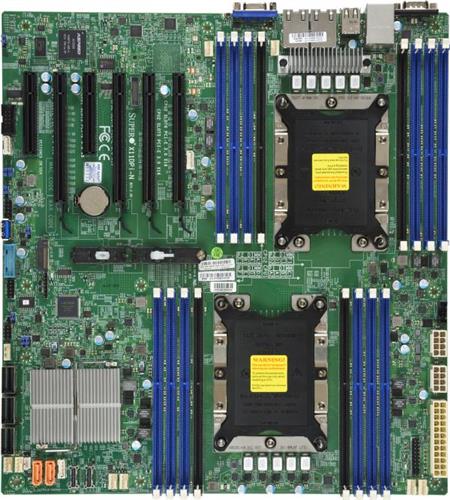

| MBD-X11DPi-NT |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 12" x 13" (30.48cm x 33.02cm)
|
| |
| Processor/Cache |
|
| CPU |
- 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
- Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
|
| Cores / Cache |
|
| Note |
- BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
- Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
- Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
-
|
| Memory Type |
- 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
| DIMM Sizes |
- RDIMM: 64GB
- LRDIMM: 128GB
- 3DS LRDIMM: 256GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with 10GBase-T with Intel® X722 + X557
|
| Graphics |
|
| |
| Input / Output |
|
| SATA |
|
| USB |
- 4 USB 2.0 ports (2 rear + 2 headers)
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
- 4 PCI-E 3.0 x16,
- 2 PCI-E 3.0 x8
|
| M.2 |
- M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2260, 2280, 22110
- Key: M-Key
|
| |
| System BIOS |
|
| BIOS Type |
|
| |
| Management |
|
| Software |
- Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| |
| PC Health Monitoring |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans), PWM fan speed control
|
| Temperature |
- CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
|
| LED |
- CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED
|
| Other Features |
- ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
