Main Specifications | ||||||||||||||||

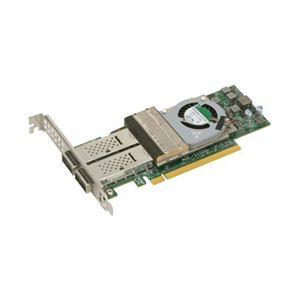

Device type | Dual-port 100GbE controller | |||||||||||||||
Dimensions (WxDxH) | 2.713" x 6.6" (6.89cm x 16.76cm) | |||||||||||||||
Form Factor | Low Profile Half Length | |||||||||||||||
Interface (Bus) Type | PCIe 3.0 x16 | |||||||||||||||
Networking | ||||||||||||||||
Port Quantity | Dual QSFP28 ports (each port supporting 100GbE, 4x 25GbE, 40GbE, 4x10GbE) | |||||||||||||||
Expansion / Connectivity | ||||||||||||||||
Expansion Slots Total Free | 1x PCIe 3.0 x16, two PCIe 3.0 x8 enabled by BIOS | |||||||||||||||
Software / System Requirements | ||||||||||||||||
OS Supports | Linux 64-bit, Linux host driver (FM10000) that is DPDK compatible | |||||||||||||||
System Requirements Details | QSFP28 ports support Copper Direct Attach 100GBASE-CR4 and 40GBASE-CR4 passive cable, including breakout cables | |||||||||||||||
Intel-branded 100GBASE-SR4 QSFP28 optical modules and 40GBASE-SR4 QSFP+ optical modules | ||||||||||||||||
Miscellaneous | ||||||||||||||||
Features | L2/L3 Port-to-Port switching, routing and meshing | |||||||||||||||
Wildcard Matching for ACLs, Service Chaining & SDN | ||||||||||||||||
Direct Assignment (SR-IOV & VMDq) underneath policy control | ||||||||||||||||
Tunnel Offloads and Tunnel Termination (VXLAN, NVGRE, Geneve) | ||||||||||||||||
Hardware Accelerated Virtual Routing, Load Balancing & NAT | ||||||||||||||||
Open vSwitch, OpenDaylight & OpenStack Integration (via Hardware Offloads API) | ||||||||||||||||
ROHS | RoHS Compliant 6/6, Pb Free |
Interfaz : | PCI-E |
Marca : | SUPERMICRO |
Puertos : | 2 x RJ45 2 x QSFP+ |
Velocidad : | 100 GBPS |
