Main Specifications | ||||||||||||||||||||||

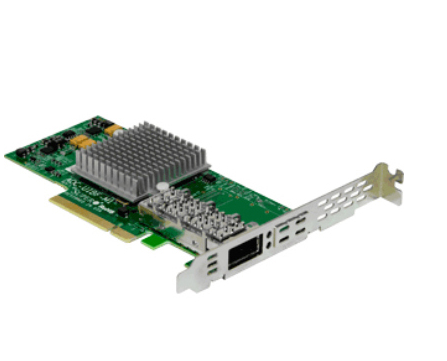

Device type | InfiniBand FDR Adapter | |||||||||||||||||||||
Dimensions (WxDxH) | Standard - 12cm (4.73"), low-profile - 7.94cm (3.13") | |||||||||||||||||||||
Form Factor | Low-profile - Compact size UIO | |||||||||||||||||||||
InfiniBand | IBTA Specification 1.2.1 compliant | |||||||||||||||||||||
Hardware-based congestion control | ||||||||||||||||||||||
16 million I/O channels | ||||||||||||||||||||||
256 to 4Kbyte MTU, 1Gbyte messages | ||||||||||||||||||||||
Interface (Bus) Type | PCI-E 3.0 x8 (8GT/s) interface | |||||||||||||||||||||
Networking | ||||||||||||||||||||||
Connectivity Technology | Single QSFP Connector | |||||||||||||||||||||
Data Link Protocol | SRP, iSER, NFS RDMA, uDAPL, Open MPI, OSU MVAPICH, Intel MPI, MS, MPI, Platform MPI, TCP/UDP, EoIB, IPoIB, SDP, RDS | |||||||||||||||||||||
Expansion / Connectivity | ||||||||||||||||||||||
Interface and Connections | Passive copper cable with ESD protection | |||||||||||||||||||||
Interoperable with InfiniBand or 10/40GbE switches | ||||||||||||||||||||||
Powered connectors for optical and active cable support | ||||||||||||||||||||||
Environmental Parameters | ||||||||||||||||||||||
Operating Temperature | 0°C to 55°C (32°F to 131°F) | |||||||||||||||||||||
Software / System Requirements | ||||||||||||||||||||||
OS Supports | Novell SLES, Red Hat Enterprise Linux (RHEL), and other Linux distributions | |||||||||||||||||||||
Microsoft Windows Server 2008/CCS 2003, HPC Server 2008 | ||||||||||||||||||||||
VMware ESX Server 3.5, vSphere 4.0/4.1 | ||||||||||||||||||||||
OpenFabrics Windows Distribution (WinOF) | ||||||||||||||||||||||
OpenFabrics Enterprise Distribution (OFED) | ||||||||||||||||||||||
Miscellaneous | ||||||||||||||||||||||
ROHS | RoHS Compliant 6/6, Pb Free | |||||||||||||||||||||
Included Accessories | BKT-0026L, BKT-0027L, CDR-NIC | |||||||||||||||||||||
Vendor Compatible Products | All UIO Motherboards and All UIO Systems |
Interfaz : | PCI-E |
Marca : | SUPERMICRO |
Puertos : | 1 x QSFP+ |
Velocidad : | 56 GBPS |
