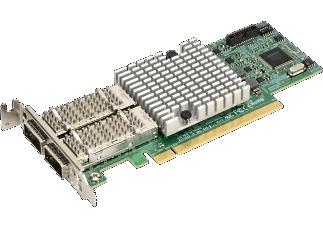

Standard LP 2-port 100G QSFP28, Mellanox CX4 EN

US$ 3487.36

AOC-S100G-M2C-O • Dual QSPF28 Connectors • Low-Profile, Short Length Standard Form Factor • PCI-E 3.0 x16 • Mellanox ConnectX®-4 EN Ethernet Controller • Asset Management Features with thermal sensor • Hardware offloads for VXLAN, NVGRE and GENEVE encapsulated traffic • Low latency RDMA over Converged Ethernet (RoCE) • SR-IOV compliant • Jumbo Frames support up to 9.6kB • PXE Support • Erasure Coding Offload • NC-SI for IPMI support • RoHS compliant 6/6

Favoritos Consultar

Comparar

Características
Ficha técnica

Características

• General
   - Mellanox ConnectX®-4 EN dual-port 100Gbps controller
   - Compact size low-profile standard form factor
   - PCI-E 3.0 x16 interface
   - Dual QSFP28 connectors
   - Max power consumption: 16.3W

• Host Interface
   - PCI-E 3.0x16
   - Message Signal Interrupt (MSI-X)

• Networking Features
   - IEEE 802.2bj, 802.3bm 100 Gigabit Ethernet
   - 25G Ethernet Consortium 25, 50 Gigabit Ethernet
   - IEE 802.3ba 40 Gigabit Ethernet
   - IEEE802.3ae 10 Gigabit Ethernet
   - IEEE802.3az Energy Efficient Ethernet
   - IEEE 802.3ap based auto-engotiation and KR startup
   - IEEE 802.ad, 802.1AX Link Aggregation
   - IEEE 802.1Q, 802.1p VLAN tags and priority
   - IEEE802.1Qau (QCN) – Congestion Notification
   - IEEE 802.1Qaz (ETS)
   - IEEE 802.1Qbb (PFC)
   - IEEE 802.1Qbg
   - IEEE 1588v2
   - Jumbo frame support (9.6KB)

• CPU Offload Features
   - RDMA over Converged Ethernet (RoCE)
   - TCP/UDP/IP stateless offload
   - LSO, LRO, checksum offload
   - RSS, TSS, HDS, VLAN insertion/stripping. Receive flow
    steering
   - Intelligent interrupt coalescence

• Storage Offloads
   - RAID offload - erasure coding (Reed-Solomon) offload

• Overlay Networks
   - Stateless offloads for overlay networks and tunneling protocols
   - Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks

• Hardware-Based I/O Virtualization
   - Single Root IOV
   - Multi-function per port
   - Address translation and protection
   - Multiple queues per virtual machine
   - Enhanced QoS for vNICs
   - VMware NetQueue support

• Virtualization Features
   - SR-IOV: up to 256 Virtual Functions
   - SR-IOV: up to 16 Physical Functions per port
   - 1K ingress and egress QoS levels
   - Guaranteed QoS for VMs

• Operating Systems/Distribution
   - RHEL/CentOS
   - Windows
   - FreeBSD
   - VMware
   - OpenFabrics Enterprise Distribution (OFED)
   - OpenFabrics Windows Distribution (WinOF-2)

• Management Features
   - Asset Management features with thermal sensor
   - NC-SI for IPMI Support

• Remote Boot
   - Remote boot over iSCSI
   - PXE and UEFI

• Operating Conditions
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at 35°C

• Physical Dimensions
   - Card PCB dimensions: 16.76cm x 6.89cm (6.6in x 2.71in) (LxW)
   - Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in)

• Weight
   - 116.12g (0.2560lb)

• Supported Platforms
   - Supermicro® motherboards with minimum PCI-E 3.0 x16 expansion slot
   - Supermicro® server systems with low-profile or full-height PCI-E 3.0 x16 expansion slot
   - NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors
