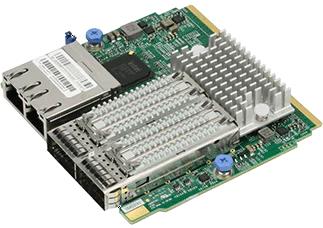

SIOM 2-port FDR IB QSFP+ and 2-port GbE RJ45, based on Mella

US$ 2790.98

AOC-MHIBF-M2Q2GM-O • Super I/O Module (SIOM) Form Factor • Mellanox® ConnectX-3 Pro InfiniBand FDR controller • Dual QSFP connector model • Up to 56Gbps InfiniBand or 40Gbps Ethernet • Virtual Protocol Interconnect (VPI) • VXLAN and NVGRE • Intel® i350 GbE controller • Dual RJ45 Connectors • NC-SI for Remote Management • Asset Management Features with thermal sensor • RoHS compliant 6/6

Favoritos Consultar

Comparar

Características
Ficha técnica

Características

• General:
   - Super I/O Module (SIOM) Form Factor
   - Mellanox® ConnectX-3 Pro FDR controller
   - Intel® i350 GbE controller
   - Dual QSFP ports and Dual RJ45 port

• Cables Support:
   - InfiniBand FDR: QSFP 56Gbps Copper cables
   - GbE: RJ45 Category 5/5e up to 100m

• Power Consumption:
   - Maximum 11W

• Operating Conditions:
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at
     35°C

• Physical Dimensions (L x H):
   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)
     (W x D)

• Supported Platforms:
   - Supermicro® motherboards with Super I/O Module slot
   - Supermicro® server systems with Super I/O Module slot
