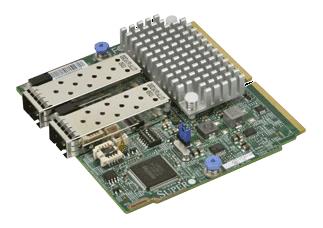

SIOM 2-port 10G SFP+ with 1U bracket, Intel 82599ES

US$ 742.52

AOC-MTGN-I2SM-O • Dual SFP+ Connectors • Super I/O Module (SIOM) Form Factor • Intel® QuickData Technology • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments • Load Balancing on Multiple CPUs • iSCSI Remote Boot Support • Fibre Channel over Ethernet (FCoE) Support • Support for most Network Operating Systems • NC-SI for Remote Management • RoHS compliant 6/6 • Supports both Direct Atttach Copper and Fiber Cables

Favoritos Consultar

Comparar

Características
Ficha técnica

Características

• General
   - Intel® 82599ES 10GbE controller
   - Super I/O Module (SIOM) Form Factor
   - Dual SFP+ ports
   - Load balancing on multiple CPUs
   - iSCSI remote boot support
   - Fibre Channel over Ethernet (FCoE) support
   - Intel® PROSet Utility for Windows® Device Manager
   - Time Sync IEEE 1588

• I/O Features
   - Direct Cache Access (DCA) to avoid cache misses
   - MSI-X support to minimize the overhead of interrupts,
     allowing load-balancing between multiple cores/CPUs
   - Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities
      (IPv4, IPv6)
   - Receive and Transmit Side Scaling for Windows environments
     and scalable I/O for Linux environments

• Virtualization Features
   - VMDq, Next-Generation VMDq (64 queues per port)
   - PC-SIG SR-IOV implementation (64 virtual functions per port)
   - Advanced Packet Filtering
   - VLAN support to allow creation of multiple VLAN segments
   - VXLAN through Software

• Management Features
   - Preboot eXecution Environment (PXE) support
   - Simple Network Management Protocol (SNMP) and Remote
     Network Monitoring (RMON) statistics counters
   - iSCSI remote boot
   - NC-SI for remote management
   - Asset Management support on Supermicro® platforms
   - Controller asset tags such as part number, revision, serial
     number, and MAC addresses

• Advanced Software Features
   - Teaming support
   - IEEE 802.3ad (link aggregation control protocol)
   - IEEE 802.1Q VLANs
   - IEEE 802.3 2005 flow control support

• OS Support
   - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
   - Windows 8.1, 8, 7 (x64 Edition)
   - RedHat Linux
   - SUSE Linux
   - FreeBSD
   - UEFI
   - VMware

• Cables Support
   - SFP+ direct attach twinaxial copper cables up to 7m
   - Fiber-optic cables (with required optional SFP+ transceivers)

• Power Consumption
   - Typical power consumption: 6.2W
   - Maximum power consumption: 7.2W

• Operating Conditions
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at 35°C

• Physical Dimensions (L x H)
   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
