CSE-826SE1C-R1K02JBOD

US$ 10122.68
Agregar al Carrito
CSE-826SE1C-R1K02JBOD
Favoritos Consultar
Comparar

Product SKUs

CSE-826SE1C-R1K02JBOD

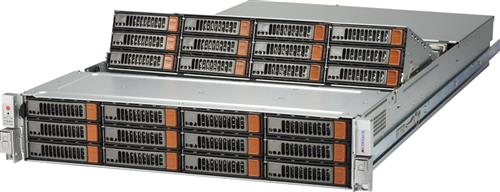

  • SuperChassis 826SE1C-R1K02JBOD

Form Factor

  • 2U SAS3 Simply double JBOD storage enclosure

Dimensions

Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 34" (863.6 mm)
  • 41" (1041 mm) with cable management arm installed
Net Weight
  • 43 lbs (19.5 kg)
Gross Weight
  • 82 lbs (37.19 kg)
Packaging (W x H x L)
  • 29.09" (739 mm) x 11.96" (304 mm) x 51" (1295 mm)
Available Color
  • Black

Drive Bays

  • 24 x 3.5" hot-swap drive bay

Qualified SAS Controllers

  • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
  • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller

Backplane

  • 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices

Front Panel

Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LEDs
  • 1 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • Power Status LED
  • Power Fail LED
  • Unit Identification (UID) LED
Systems Cooling

Fans
  • 5 x 8cm hot-swap redundant PWM cooling fan(s)

System Monitoring

  • IPMI

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 127Vac
  • 1000W with Input 200 - 240Vac
  • 1000W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 203 x 73.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66.7A (100Vac - 127Vac)
  • Max: 83A (200Vac - 240Vac)
  • Max: 83A (200 - 240)
+12Vsb
  • Max: 2.1A / Min: 0A
Power Distributor
  • PDB-PT226S-8824
  • O/P: 12V/168A
  • +5V Max: 60A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Bahias Hot-Swap : 9 - 24
Chasis Form Factor : 2U
Form Factor : 3.5''
Power Supply : > 920W
