CSE-512F-600B

US$ 914.06
Agregar al Carrito
CSE-512F-600B
Favoritos Consultar
Comparar
Product SKUs

CSE-512F-600B

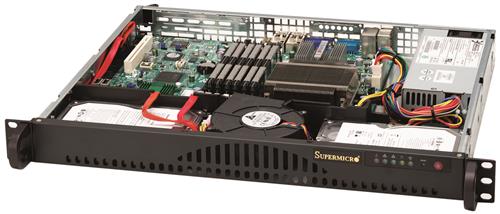

  • SuperChassis 512F-600B

Form Factor

  • 14.5" Mini 1U chassis - supports for maximum motherboard sizes: ATX 12" x 10"

Processor Support

  • Single and Dual Intel® and AMD processors

Dimensions

Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 14.5" (369 mm)
Gross Weight
  • 14 lbs (6.35 kg)
Packaging (W x H x L)
  • 22" (559 mm) x 6.3" (160 mm) x 20" (508 mm)
Available Color
  • Black

Expansion Slots

  • 1 full-height & half-length expansion slot(s) (Riser Card Required)

Drive Bays

  • 1 x 3.5" fixed drive bay
  • SAS or enterprise SATA HDD only recommended

Peripheral Drives

  • 1 x slim DVD-ROM drive bay
  • Optional 1 x Slim DVD-ROM Drive

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Ports
  • 2x USB 2.0 Port(s)
Systems Cooling

Fans
  • 3 x 4cm counter-rotating PWM fan(s)

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 600/680W Multi-output 80PLUS gold power supply, 24pin output
Power Efficiency
  • 92%
Total Output Power and Input
  • 600W with Input 100 - 140Vac
  • 680W with Input 180 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 100 x 40 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 49A / Min: 1A (100Vac - 140Vac)
  • Max: 56A / Min: 1A (180Vac - 240Vac)
+5V
  • Max: 20A / Min: 1A
+3.3V
  • Max: 16A / Min: 0.8A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Gold Certified  Gold Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Bahias Fixed : 1
Chasis Form Factor : 1U
Form Factor : 3.5''
Power Supply : 560W - 800W
