CSE-113MFAC2-341CB

US$ 1478.04
Agregar al Carrito
CSE-113MFAC2-341CB
Favoritos Consultar
Comparar

Product SKUs

CSE-113MFAC2-341CB

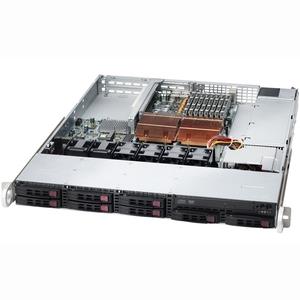

  • SuperChassis 113MFAC2-341CB

Form Factor
  • 1U Chassis for motherboard support size: (12" x 10") (ATX 12" x 10")

Processor Support

  • Single Intel® and AMD processors

Dimensions

Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.98" (507 mm)
Net Weight
  • 18.5 lbs (8.39 kg)
Gross Weight
  • 29.5 lbs (13.38 kg)
Packaging (W x H x L)
  • 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm)
Available Color
  • Black

Expansion Slots

  • 1 full-height & full-length expansion slot(s)

Drive Bays

  • 8 x 2.5" hot-swap SAS/SATA drive bay

Backplane

  • 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices

Peripheral Drives

  • Optional 1 x slim DVD-ROM drive bay

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Unit Identification (UID) LED
Systems Cooling

Fans
  • 4 x 40x28mm PWM fan(s)

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 340W Multi-output power supply W/PMbus, Platinum level
Power Efficiency
  • 93%
Total Output Power and Input
  • 340W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 279.4 x 76 x 40.4 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 28A / Min: 0.5A (100Vac - 240Vac)
+5V
  • Max: 16A / Min: 0.5A
+3.3V
  • Max: 15A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Bahias Hot-Swap : 2 - 8
Chasis Form Factor : 1U
Form Factor : 2.5''
Power Supply : 200W - 350W
