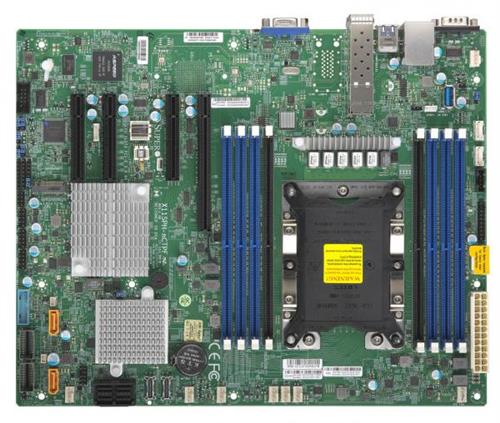

X11SPH-NCTPF-O

US$ 2080.26
Agregar al Carrito
MBD-X11SPH-NCTPF-O
Favoritos Consultar
Comparar

Product SKUs

MBD-X11SPH-nCTPF
  • X11SPH-nCTPF

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU
  • 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
  • Single Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP
Cores / Cache
  • Up to 28 cores
Note
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory

Memory Capacity
  • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 32GB, 64GB, 128GB
  • 3DS LRDIMM: 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices

Chipset
  • Intel® C622
SATA
  • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Broadcom® 3008 SW controller for 8 SAS3 (12Gbs) ports; RAID 0,1,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 10G SFP+ with Intel® X722 + Inphi CS4227
Graphics
  • Aspeed AST2500 BMC

Input / Output

SATA
  • 10 SATA3 (6Gbps) port
LAN
  • 2 10G SFP+ LAN ports
USB
  • 8 USB 2.0 ports (2 rear + 6 headers)
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • TPM Header
Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x16 (x16 or x8 ),
  • 1 PCI-E 3.0 x8 (x0 or x8 ),
  • 1 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2280
  • Key: M-Key
  • Double Height Connector

System BIOS

BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later

Management

Software
  •
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring

Voltage
  • N/A
FAN
  • 8x 4-pin fan headers (up to 8 fans)
Temperature
  • CPU thermal trip support, PECI
LED
  • CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features
  • N/A

Operating Environment

Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Socalo de CPU : 3647
Tipo de Memoria : DDR4 RDIMM
Cantidad de Sockets : 1
HW RAID : RAID 0, 1, 10
IPMI : Si
LAN : Dual port 10G SFP+
Marca : SUPERMICRO
Memoria RAM maxima : 2TB
PCIEx16 : 1
PCIEx8 : 3
SuperDOM : 2
