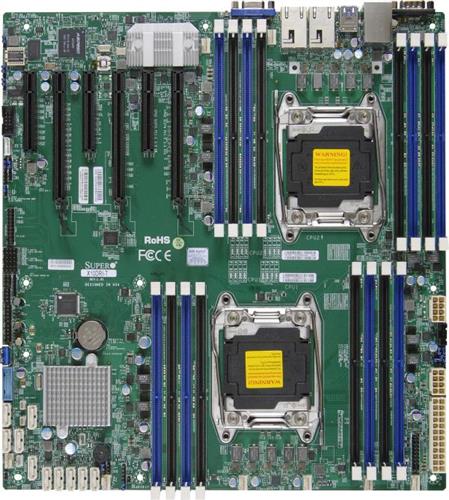

| Product SKUs |  | | MBD-X10DRi | | | | | Physical Stats | | | Form Factor | | | Dimensions | - 12" x 13" (30.48cm x 33.02cm)
| | | | Processor/Cache | | | CPU | - Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
- Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 2 QPI up to 9.6GT/s
| | Cores / Cache | - Up to 24 cores / Up to 55MB† cache
| | Note | - † BIOS version 2.0 or above is required
| | Note | - ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
| | | | System Memory | | | Memory Capacity | - Up to 1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slotsUp to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
| | Memory Type | - 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
| | DIMM Sizes | - RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
| | Memory Voltage | | | Error Detection | - Corrects single-bit errors
| | | | On-Board Devices | | | Chipset | | | AHCI SATA | - SATA3 (6Gbps); RAID 0, 1, 5, 10
| | SCU SATA | - SATA3 (6Gbps); RAID 0, 1, 5, 10
| | IPMI | - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
| | Network Controllers | - Dual LAN with Intel® i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output | | Graphics | | | | | Input / Output | | | SATA | | | LAN | - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
| | USB | - 6 USB 2.0 ports (2 rear + 4 headers)
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
| | Video Output | | | Serial Port / Header | - 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial | | TPM | | |  | | Expansion Slots | | | PCI-E | - 3 PCI-E 3.0 x16,
- 3 PCI-E 3.0 x8
| | | | System BIOS | | | BIOS Type | - 128Mb SPI Flash EEPROM with AMI BIOS
| | BIOS Features | - Plug and Play (PnP)
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
| | | | Management | | | Software | - Intel® Node Manager, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
| | Power Configurations | - ACPI Power Management
- Power-on mode for AC power recovery
| | | | PC Health Monitoring | | | Voltage | - +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, Chassis intrusion header, Supports system management utility, VBAT
| | FAN | - 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
| | Temperature | - Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
| | LED | - CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
| | Other Features | - Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
| | | | Operating Environment | | | Operating Temperature Range | - 10°C - 35°C (50°F - 95°F)
| | Non-Operating Temperature Range | - -40°C - 70°C (-40°F - 158°F)
| | Operating Relative Humidity Range | - 8% - 90% (non-condensing)
| | Non-Operating Relative Humidity Range | - 5% - 95% (non-condensing)
| |
