Nytro Enterprise
Lightspeed, Solid, Impresive

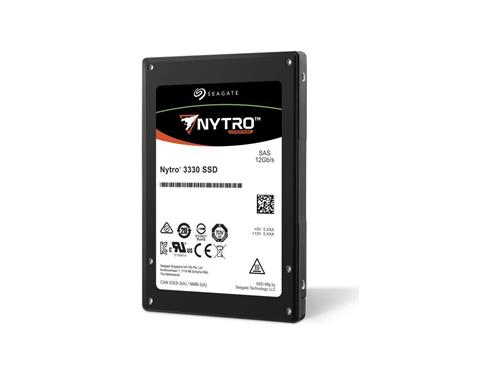

Nytro 3000 SAS SSD
The Seagate® Nytro® 3000 SAS SSD family includes the next generation of high-capacity, high-performance SAS SSDs designed with multiple endurance offerings optimized for demanding enterprise applications and improved TCO
Nytro 3330—Scaled Endurance | |
---|---|
Standard Model Number | XS960SE10003 |
Interface | Dual 12Gb/s SAS |
Capacity | 960GB |
NAND Flash Type | 3D eTLC |
Form Factor | 2.5 in x 7mm |
Performance at Max Power Limit | |
Sequential Read (MB/s) Sustained, 64KB | 2100 |
Sequential Write (MB/s) Sustained, 64KB | 640 |
Random Read (IOPS) Sustained, 4KB | 245,000 |
Random Write (IOPS) Sustained, 4KB | 35,000 |
Random 30% Write (IOPS) Sustained, 4KB | 95,000 |
Performance at 9W Power Limit | |
Sequential Read (MB/s) Sustained, 64KB | 2100 |
Sequential Write (MB/s) Sustained, 64KB | 650 |
Random Read (IOPS) Sustained, 4KB | 245,000 |
Random Write (IOPS) Sustained, 4KB | 35,000 |
Random 30% Write (IOPS) Sustained, 4KB | 95,000 |
Average Latency (μs) | 120 |
Endurance/Reliability | |
Lifetime Endurance (Drive Writes per Day) | 1 |
Nonrecoverable Read Errors per Bits Read | 1 per 1018 |
Annualized Failure Rate (AFR) | 0.35% |
Power Management | |
+5/+12V Max Start Current (A) | 0.44/0.41 |
Configurable Power Limit Settings (W) | 7 to 14 |
Average Idle Power (W) | 3 |
Physical | |
Height (in/mm, max) | 0.276/7.00 |
Width (in/mm, max) | 2.760/70.10 |
Depth (in/mm, max) | 3.955/100.45 |
Weight (lb/g) | 80/0.176 |
CLICK HERE TO VIEW THE MANUFACTURER'S ITEM DESCRIPTION/BROCHURE
Capacidad de Almacenamiento SSD : | 960GB a 1.2TB |
DWPD : | 1 DWPD a 3 DWPD |
Form Factor : | 2.5'' |
Interfaz : | SAS 3.0 |
Marca : | Micron |
MTBF/MTTF : | 2.0M |
SED : | NO |
Tipo de Memoria SSD : | TLC |
Almacenamiento: | 960GB |
