Lightspeed, Solid, Impresive

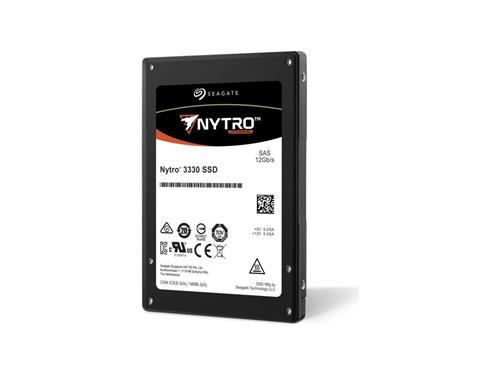

Nytro 3000 SAS SSD
The Seagate® Nytro® 3000 SAS SSD family includes the next generation of high-capacity, high-performance SAS SSDs designed with multiple endurance offerings optimized for demanding enterprise applications and improved TCO
Nytro 3330—Scaled Endurance | |
---|---|
Standard Model Number | XS15360SE70103 |
Interface | Dual 12Gb/s SAS |
Capacity | 15.36TB / 15360GB |
NAND Flash Type | 3D eTLC |
Form Factor | 2.5 in x 15mm |
Performance at Max Power Limit | |
Sequential Read (MB/s) Sustained, 64KB | 2100 |
Sequential Write (MB/s) Sustained, 64KB | 1690 |
Random Read (IOPS) Sustained, 4KB | 260,000 |
Random Write (IOPS) Sustained, 4KB | 60,000 |
Random 30% Write (IOPS) Sustained, 4KB | 150,000 |
Performance at Max Power Limit | |
Sequential Read (MB/s) Sustained, 64KB | 2100 |
Sequential Write (MB/s) Sustained, 64KB | 990 |
Random Read (IOPS) Sustained, 4KB | 260,000 |
Random Write (IOPS) Sustained, 4KB | 45,000 |
Random 30% Write (IOPS) Sustained, 4KB | 105,000 |
Average Latency (μs) | 120 |
Endurance/Reliability | |
Lifetime Endurance (Drive Writes per Day) | 1 |
Nonrecoverable Read Errors per Bits Read | 1 per 10E18 |
Annualized Failure Rate (AFR) | 0.35% |
Power Management | |
+5/+12V Max Start Current (A) | 0.44/0.47 |
Configurable Power Limit Settings (W) | 7 to 14 |
Average Idle Power (W) | 3 |
Physical | |
Height (in/mm, max) | 0.591/15.00 |
Width (in/mm, max) | 2.760/70.10 |
Depth (in/mm, max) | 3.955/100.45 |
Weight (lb/g) | 0.364/165 |
CLICK HERE TO VIEW THE MANUFACTURER'S ITEM DESCRIPTION/BROCHURE
Capacidad de Almacenamiento SSD : | 1.92TB + |
DWPD : | 1 DWPD a 3 DWPD |
Form Factor : | 2.5'' |
Interfaz : | SAS 3.0 |
Marca : | SEAGATE |
MTBF/MTTF : | 2.0M |
SED : | NO |
Tipo de Memoria SSD : | TLC |
Almacenamiento: | 15TB |
