Seagate SSD Jofa 7.6TB SAS 15mm 1DWPD RoHS

US$ 10917.24

Agregar al Carrito

HDS-X2A-XS7680SE70103

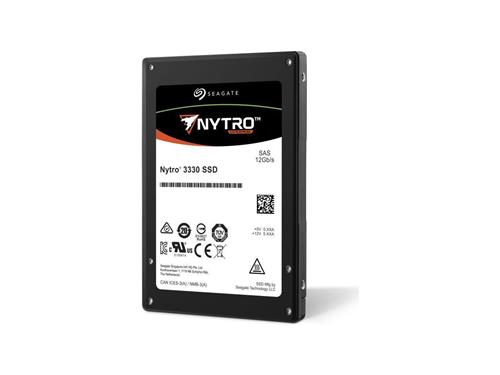

Seagate Nytro 3330 XS7680SE70103 7.68TB 2.5-Inch 12Gbps 3D eTLC SAS Solid State Drive - Brand New

Seagate Nytro 3330 XS7680SE70103 7.68TB / 7680GB 2.5" 12.0 Gb/s Scaled Endurance / Read Intensive 1-DWPD

Drive Writes Per Day 3D Enterprise Triple Level Cell / eTLC Serial Attached SCSI / SAS Solid State Drive / SSD - Brand New

Favoritos Consultar

Características

Nytro 3330—Scaled Endurance
Standard Model Number	XS7680SE70103
Interface	Dual 12Gb/s SAS
Capacity	7.68TB / 7680GB
NAND Flash Type	3D eTLC
Form Factor	2.5 in x 15mm
Performance at Max Power Limit
Sequential Read (MB/s) Sustained, 64KB	2100
Sequential Write (MB/s) Sustained, 64KB	1850
Random Read (IOPS) Sustained, 4KB	400,000
Random Write (IOPS) Sustained, 4KB	115,000
Random 30% Write (IOPS) Sustained, 4KB	230,000
Performance at 9W Power Limit
Sequential Read (MB/s) Sustained, 64KB	2100
Sequential Write (MB/s) Sustained, 64KB	990
Random Read (IOPS) Sustained, 4KB	275,000
Random Write (IOPS) Sustained, 4KB	55,000
Random 30% Write (IOPS) Sustained, 4KB	125,000
Average Latency (μs)	120
Endurance/Reliability
Lifetime Endurance (Drive Writes per Day)	1
Nonrecoverable Read Errors per Bits Read	1 per 10E18
Annualized Failure Rate (AFR)	0.35%
Power Management
+5/+12V Max Start Current (A)	0.44/0.47
Configurable Power Limit Settings (W)	7 to 14
Average Idle Power (W)	3
Physical
Height (in/mm, max)	0.591/15.00
Width (in/mm, max)	2.760/70.10
Depth (in/mm, max)	3.955/100.45
Weight (lb/g)	165/0.364

Ficha técnica

Capacidad de Almacenamiento SSD :	1.92TB +
DWPD :	1 DWPD a 3 DWPD
Form Factor :	2.5''
Interfaz :	SAS 3.0
Marca :	SEAGATE
MTBF/MTTF :	2.0M
SED :	NO
Tipo de Memoria SSD :	TLC
Almacenamiento:	7.6TB
