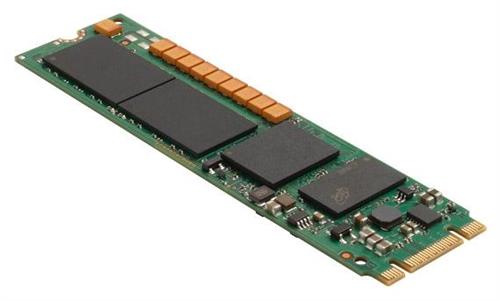

Micron 5100 PRO 960GB M.2. SATA 6Gb/s 2.5DWPD

US$ 1181.08

HDS-M2D-MTFDDAV960TCB1AR Micron’s 5100 solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and four channels of Micron NAND Flash internally. Available in both M.2 and 2.5-inch form factors, the SSD integrates easily in existing storage infrastructures.

Favoritos Consultar

Comparar

Características
Ficha técnica

Características

Micron 5100 PRO
Model Number	MTFDDAK960TCB-1AR1ZABYY / MTFDDAK960TCB-1AR1ZAB
Technical Specification
Brand	Micron
Manufacturer	Micron Enterprise SSD
Model	5100 PRO
Capacity	960GB
Encryption Details	Not Encrypted
Form Factor	2.5in (6.4cm)
Sequential Read (128KB transfer)	540 5W
Sequential Write (128KB transfer)	520 5W
Random Read (4KB transfer)	93,000
Random Write (4KB transfer)	37,000
Random 70/30 R/W (4KB transfer)	54,000
Read latency (99.9%)	500
Write latency (99.9%)	500
Read latency (99.999%)	9.0
Write latency (99.999%)	5.0
Drive Lifetime (Total Bytes Written)	4,400TB
Voltage Input	Symbol V12 V5 Min 10.8V 4.5V Max 13.2V 5.5V
Operating temperature	Min: 0°C Max: 70°C
Non Operating temperature	Min: -40°C Max: 85°C
Rate of temperature change	Max: 20°C/hour
Relative humidity (non-condensing)	Min: 5% Max: 95%
Min Operating Temperature	32°F
Non-operating shock	1500G/0.5ms
Non-operating vibration	5–800Hz at 3.13 Grms
Uncorrectable Bit Error Rate	<1 sector per 10e17 bits
MTTF	3.0 million
Idle Average	1.5W
Flash Type	3D eTLC
Dimensions (W x L x H)	69.85mm x 100.45mm x 7.00mm

Ficha técnica

Capacidad de Almacenamiento SSD :	960GB a 1.2TB
DWPD :	1 DWPD a 3 DWPD
Form Factor :	M.2
Interfaz :	SATA 3.0 M.2
Marca :	Micron
MTBF/MTTF :	2.0M
SED :	NO
Tipo de Memoria SSD :	3D NAND
