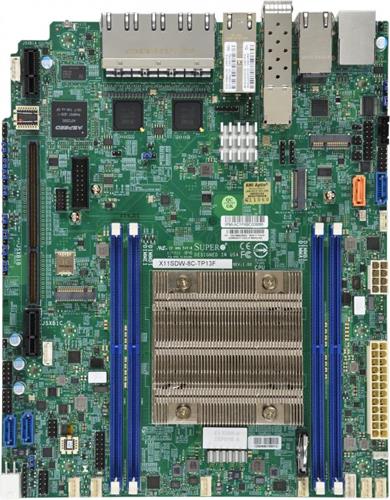

| MBD-X11SDW-8C-TP13F |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 8" x 9.6" (20.32cm x 24.38cm)
|
| |
| Processor/Cache |
|
| CPU |
- Intel® Xeon® Processor D-2146NT.
- Single Socket FCBGA-2518 supported, CPU TDP support Up to 80W TDP
|
| Cores / Cache |
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
- (Operating speed up to 2133MHz)
|
| DIMM Sizes |
- 8GB, 16GB, 32GB, 64GB, 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Quad LAN with 1GbE with Inte® I350-AM4
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)
|
| Graphics |
- Aspeed AST2500 BMC
- Header Only
|
| |
| Input / Output |
|
| SATA |
- 4 SATA3 ports via SoC controller
|
| LAN |
- 2 10G SFP+ LAN ports
- 2 RJ45 10GBase-T ports
- 9 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 4 USB 2.0 ports (4 headers, Type A))
- 2 USB 3.1 Gen1 ports (2 Rears Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
- 1 PCI-E 3.0 x32 Left Riser Slot
|
| M.2 |
- 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
- 1 M.2 E-Key PCI-E 3.0 x1, 2230
- 1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242/3042
|
| |
| System BIOS |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.1
- SMBIOS 3.1
- UEFI 2.7
- PCI FW 3.2
|
| |
| Management |
|
| Software |
- Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
|
| System Mangement Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
|
| Power Configurations |
- +12V DC Power Input
- ACPI Power Management
- CPU thermal trip support for processor protection
|
| |
| PC Health Monitoring |
|
| Voltage |
- +1.5V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5 -fan status, 6 -fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, System temperature
|
| FAN |
- 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
|
| LED |
- CPU / System Overheat LED, UID/Remote UID
|
| Other Features |
- 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel® QuickAssist Technology , M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 0°C ~ 60°C (32°F ~ 140°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
