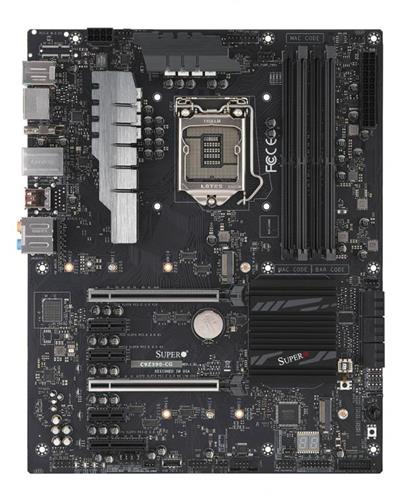

C9Z390-CG-O

US$ 970.50
Agregar al Carrito
MBD-C9Z390-CG-O
Favoritos Consultar
Comparar

Product SKUs

MBD-C9Z390-CG
  • C9Z390-CG

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU
  • Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.
  • Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP

System Memory

Memory Capacity
  • Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type
  • 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices

Chipset
  • Intel® Z390 Express
SATA
  • Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
Audio
  • 7.1 HD Audio
Graphics
  • DP up to 1.2; HDMI up to 1.4b

Input / Output

SATA
  • 6 SATA3 (6Gbps) port
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
USB
  •
  • 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers)
  • 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 header)
  • Internal USB 3.1 Gen2 port only supports one type-C device
Video Output
  • 2 DP (DisplayPort) ports, 1 HDMI port,
  • DP up to 1.2; HDMI up to 1.4b
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots

PCI-E
  • 2 PCI-E 3.0 x16 slots (16/NA or 8/8),
  • 1 PCI-E 3.0 x4,
  • 3 PCI-E 3.0 x1
  • CPU Slot3 PCI-E 3.0 x8 (IN x16) slot and CPU Slot1 PCI-E 3.0 x4 slot share the same PCI-Ex16 link with CPU Slot6 PCI-E 3.0 x16 slot. CPU Slot6 PCI-E 3.0 x16 slot and CPU Slot3 PCI-E 3.0 x8 (IN x16) slot will change to PCI-E 3.0 x8 link and PCI-E 3.0 x4 link respectively when an add-on card is installed in CPU Slot1 PCI-E 3.0 x4 slot
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2260/2280/22110, 2242/2260/2280
  • Key: M-Key , M-Key

System BIOS

BIOS Type
  • AMI AMI 64Mb SPI Flash ROM
BIOS Features
  • ACPI 6.0
  • SMBIOS 3.0 or later
  • UEFI 2.4

Management

Software
  • SuperDoctor® 5, Watchdog
System Mangement Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery

PC Health Monitoring

Voltage
  • +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status
FAN
  • 5 fans with tachometer status monitoring
Temperature
  • PECI
LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion header
Socalo de CPU : 2066
Tipo de Memoria : DDR4 UDIMM
Cantidad de Sockets : 1
Marca : SUPERMICRO
Memoria RAM maxima : 128GB
PCIEx16 : 2
PCIEx8 : 4
