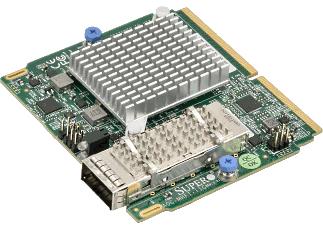

• Bus interface:
- PCI-E 3.0 x16
• Device type:
- End point
• Advanced interrupts:
- MSI-X
- INTx
• ASIC:
- Single Intel® OP HFI ASIC
• Max Data Rate:
- 100 Gbps
• Virtual Lanes:
- Configurable from one to eight VLs plus one management VL
• MTU:
- Configurable MTU size of 2 KB, 4 KB, 8 KB, or 10KB
• Interfaces:
- Supports QSFP28 Quad Small Form Factor pluggable passive
? copper cables, Optical Transceivers, and Active
? Optical Cables
• Port:
- One Intel® OP 4X Host Fabric Interface QSFP28
• Software Operating Systems:
- Red Hat Enterprise Linux
- SUSE Enterprise Linux Server
- CentOS
- Scientific Linux
• Power Consumption:
- Copper: Typical 7.4W, Maximum 11.7W
- Optical: Typical 10.6W, Maximum 14.9W (Class 4 Optics)
• Operating Conditions:
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity
? at 35°C
• Physical Dimensions:
- Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)
? (W x D)
• Supported Platforms:
- Supermicro® motherboards with Super I/O Module slot
- Supermicro® server systems with Super I/O Module slot
Interfaz : | SIOM |
Marca : | SUPERMICRO |
Puertos : | 1 x SFP+ |
