CSE-813MFTQC-350CB2

US$ 1249.54
Agregar al Carrito
CSE-813MFTQC-350CB2
Favoritos Consultar
Comparar

Product SKUs

CSE-813MFTQC-350CB2

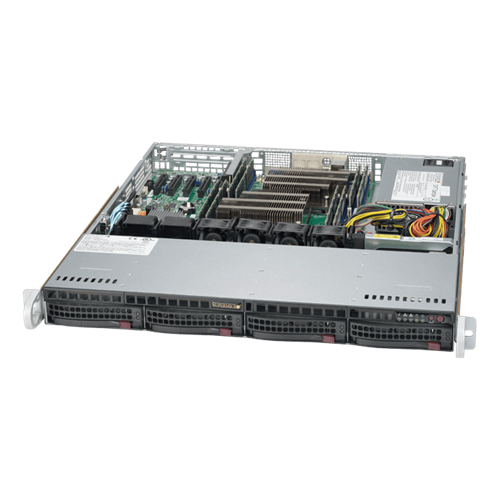

  • SuperChassis 813MFTQC-350CB2

Form Factor
  • 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")

Processor Support

  • Dual, single Intel® / AMD processors

Dimensions

Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.85" (503 mm)
Gross Weight
  • 31 lbs (14.06 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color
  • Black

Expansion Slots

  • 1 full height expansion slot(s)

Drive Bays

  • 4 x 3.5" hot-swap SAS/SATA

Backplane

  • 1U 4-Port 12Gbps Backplane Support 4x3.5

Peripheral Drives

  • Optional 1 x Slim DVD-ROM Drive

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • System Information LED
Systems Cooling

Fans
  • 4 x 40x28mm PWM fan(s)
  • Optional 2 x 40x28mm PWM fan(s)

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency
  • 93%
Total Output Power and Input
  • 350W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 180 x 100 x 40 mm
Output Type
  • 24pin ATX
-12V
  • Max: .2A / Min: 0A
+12V
  • Max: 29A / Min: .5A (100Vac - 240Vac)
+5V
  • Max: 15A / Min: .2A
+3.3V
  • Max: 12A / Min: .2A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
Bahias Hot-Swap : 2 - 8
Chasis Form Factor : 1U
Form Factor : 2.5''
Power Supply : 200W - 350W
