CSE-512F-350B

US$ 748.74
Agregar al Carrito
CSE-512F-350B
Favoritos Consultar
Comparar

Product SKUs

CSE-512F-350B

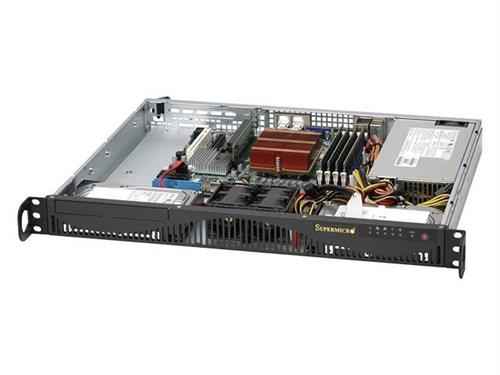

  • SuperChassis 512F-350B

Form Factor

  • 14.5" Mini 1U chassis - supports maximum motherboard sizes: ATX 12" x 10"

Processor Support

  • Single and Dual Intel® and AMD processors

Dimensions

Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • N/A
Gross Weight
  • 14 lbs (6.35 kg)
Packaging (W x H x L)
  • 22" (559 mm) x 6.3" (160 mm) x 20" (508 mm)
Available Color
  • Black

Expansion Slots

  • 1 full-height & half-length expansion slot(s) (Riser Card Required)

Drive Bays

  • 2 x 3.5" fixed drive bay
  • SAS or enterprise SATA HDD only recommended

Peripheral Drives

  • 1 x slim DVD-ROM drive bay
  • Optional 1 x Slim DVD-ROM Drive

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Systems Cooling

Fans
  • 2 x 4cm counter-rotating PWM fan(s)

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 350W Multi-output Power Supply Gold level 100mm width
Power Efficiency
  • 92%
Total Output Power and Input
  • 350W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 100 x 40.3 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 29A / Min: 1A (100Vac - 240Vac)
+5V
  • Max: 18A / Min: 0.5A
+3.3V
  • Max: 15A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Gold Certified  Gold Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Bahias Fixed : 1
Chasis Form Factor : 1U
Form Factor : 3.5''
Power Supply : 350W - 560W
