CSE-514-R400C

US$ 2178.18
Agregar al Carrito
CSE-514-R400C
Favoritos Consultar
Comparar
Product SKUs
CSE-514-R400C

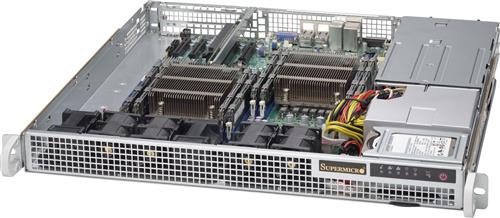

  • SuperChassis 514-R400C

Form Factor
  • Support STD MB, size up to E. ATX 12" x 13".

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 16.9" (429 mm)
Gross Weight
  • 18 lbs (8.16 kg)
Packaging (W x H x L)
  • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
Available Color
  • No Paint

Expansion Slots
  • Up to
  • 1 full height expansion slot(s)

Drive Bays
  • Up to 2 x 2.5" fixed with bracket
  • SAS or enterprise SATA HDD only recommended

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Motherboard (for CSE- 514-R400C)
X10DRL-i X10DRL-CT
X10DRD-iNTP X10DRD-iTP
X10DRD-LTP X10DRL-iT
X10DRL-C X10DRD-iNT
X10DRD-iT X10DRD-i
X10DRD-LT X10DRD-L
X11SSZ-TLN4F X11SSZ-F
X11SSZ-QF X10SRM-TF
X10SRM-F X11SSW-4TF
X11SSW-TF X9DRD-iF
X9DRD-LF


Servers (for CSE- 514-R400C)
6018R-MDR


Systems Cooling
Fans
  • 4 x 40x56mm PWM fan(s)
  • Optional 2 x fans for AOC cooling

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 400W Redundant single output power supply, W/PMbus, gold level
Power Efficiency
  • 92%
Total Output Power and Input
  • 400W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 54.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 33A / Min: 0.5A (100Vac - 240Vac)
+5Vsb
  • Max: 3A / Min: 0A
Power Distributor
  • PDB-PT514-2824
  • O/P: 12V/54A
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Gold Certified  Gold Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Socalo de CPU : 2011   3647   1151
Marca : SUPERMICRO
