| Product SKUs |
 |

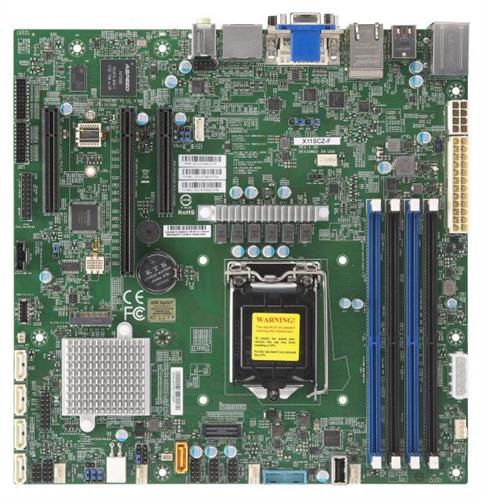

| MBD-X11SCZ-F |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
| |
| Processor/Cache |
|
| CPU |
- Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® Processor E-2100 series.
- Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
- A graphic integrated CPU is required to have onboard video from the DVI and DP ports
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
|
| Memory Type |
- 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| *Future support for 128GB via a BIOS update |
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
|
| Audio |
|
| Graphics |
- Aspeed AST2500 BMC, Intel® HD Graphics
- 3 Independent Displays
|
| |
| Input / Output |
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
|
| USB |
- 7 USB 2.0 ports (6 headers, 1 Type A)
- 2 USB 3.1 Gen1 ports(2 headers)
- 6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 headers)
|
| Video Output |
- 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
- 3 Independent Displays
|
| Serial Port / Header |
|
| TPM |
|
|
 |
| Expansion Slots |
|
| PCI-E |
- 1 PCI-E 3.0 x16,
- 2 PCI-E 3.0 x4 (in x8 slot)
|
| M.2 |
- 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
|
| |
| System BIOS |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.1
- SMBIOS 3.1
- PCI FW 3.0
- UEFI 2.6
- RTC (Real Time Clock) Wakeup
|
| |
| Management |
|
| Software |
- IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, Watchdog
|
| System Mangement Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
|
| Power Configurations |
- +12V DC Power Input
- ATX Power connector
- ACPI Power Management
|
| |
| PC Health Monitoring |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 6 -fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT
|
| FAN |
- 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
|
| Temperature |
- Thermal Control for 6 Fan Connectors
|
| LED |
|
| Other Features |
- 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 0°C ~ 60°C (32°F ~ 140°F)
|
| Non-Operating Temperature Range |
- -40°C - 85°C (-40°F - 185°F)
|
| Operating Relative Humidity Range |
- 10% ~ 85% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
