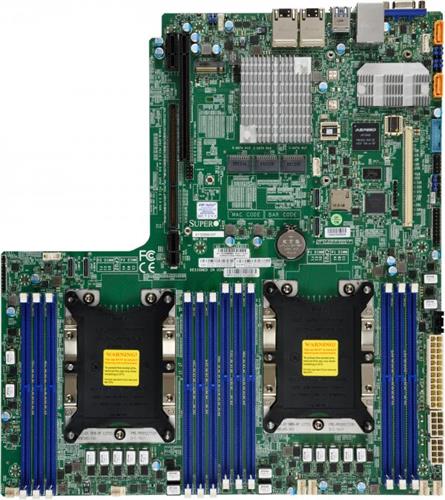

| MBD-X11DDW-NT |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 12.3" x 13.4" (31.24cm x 34.04cm)
|
| |
| Processor/Cache |
|
| CPU |
- 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
- Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;
- Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
|
| Memory Type |
- 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
| DIMM Sizes |
- RDIMM: 64GB, 128GB
- LRDIMM: 64GB, 128GB
- 3DS LRDIMM: 128GB, 256GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with 10Gbase-T
from C622
|
| Graphics |
|
| |
| Input / Output |
|
| LAN |
|
| USB |
- 6 USB 3.0 ports (4 rear + 2 headers)
|
| Video Output |
|
| TPM |
|
|
|
| Expansion Slots |
|
| PCI-E |
- 1 PCI-E 3.0 x32 Left Riser Slot,
- 1 PCI-E 3.0 x16 Right Riser Slot,
- 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
|
| M.2 |
- M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2242, 2260, 2280, 22110
- Key: M-Key
|
| |
| System BIOS |
|
| BIOS Type |
|
| |
| Management |
|
| Software |
- Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| |
| PC Health Monitoring |
|
| Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 5+1 Phase-switching voltage regulator, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
|
| FAN |
- 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
|
| Temperature |
|
| LED |
- CPU / System Overheat LED, UID/Remote UID
|
| Other Features |
- Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, Halogen Free, UID
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
