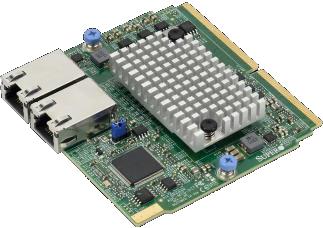

SIOM Dual-port 10GbE RJ45 10GBase-T, Broadcom BCM57416 w/ 1U bracket

US$ 586.06

AOC-MTG-B2TM-O Super I/O Module (SIOM) Form Factor Broadcom® BCM57416 10GbE controller Dual RJ45 Connectors TruFlow NPAR (NIC Partitioning) VXLAN and NVGRE Low latency RDMA over Converged Ethernet (RoCE) Asset Management Features with thermal sensor

Favoritos Consultar

Comparar

Características
Ficha técnica

Características

General
- Super I/O Module (SIOM) Form Factor
- Broadcom BCM57416 dual-port 10Gbps controller
- Dual RJ45 connectors
- TruFlow Technology
Host Interface
- PCI-E 3.0 (8GT/s)
- MCTP over SMBus
- Function level Rest (FLR) support
- Message Signal Interrupt (MSI-X)
Networking Features
- Jumbo Frames (up to 9600-byte)
- 802.3x flow control
- Link Aggregation (802.3ad)
- Virtual LANs 802.1q VLAN tagging
- Configurable Flow Acceleration
- IEEE 1588 and Time Sync
- RDMA over Converged Ethernet (RoCE)
Stateless Offload Features
- TCP, UDP, IPv4, IPv6 checksum offload
- Large Send Offload
- Receive Segment Coalescing
- TCP segmentation Offload
- Large Receive Offload
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
NIC partitioning (NPAR)
- 16 Physical Functions
- QoS per partition
- Partitioning control via sideband communication
- Up to 64MAC/VLAN filters per partition
- Stateless offload configuration per partition
- VEB/VEPA support
Virtualization Features
- NetQueue, VMQueue, and Multiqueue
- Support for 128 Virtual Functions
- VXLAN
- NVGRE
- Geneve
- Edge Virtual Bridging (EVB)
Flow Processing
- Exact/Wildcard Match Flow Lookup
- VLAN insertion/deletion
- NAT/NAPT
- Mirroring
Data Center Bridging
- Priority-based flow control (PFC; IEEE 802.1Qbb)
- Enhanced transmission selection (ETS; IEEE802.1Qau)
- Quantized congestion Notification (QCN; IEEE802.1Qau)
- Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz)
- 8 traffic classes per port; fully DCB compliant per 802.1Qbb
Manageability
- Network Controller Sideband Interface (NC-SI)
- PXE and iSCSI boot
- Asset Management with Thermal Sensors
Power Savings
- ACPI compliant power management
- PCI Express Active State Power Management (ASPM)
- Ultra low-power mode
- Pass-through Energy Efficient Ethernet (IEEE802.3az-2010)
Power Consumption
- Maximum power consumption: 11W
Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity at 35°C
Physical Dimensions
- Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
