| Product SKUs |
 |

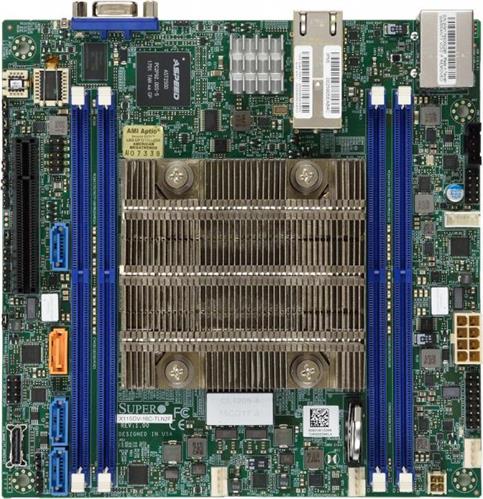

| MBD-X11SDV-4C-TLN2F |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 6.75" x 6.75" (17.15cm x 17.15cm)
|
| |
| Processor/Cache |
|
| CPU |
- Intel® Xeon® Processor D-2123IT
|
| Cores / Cache |
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB ECC LRDIMM, in 4 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
- (Operating speed up to 2400MHz)
|
| DIMM Sizes |
- RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
- LRDIMM: 16GB, 32GB, 64GB, 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
|
| IPMI |
|
| Network Controllers |
- Dual LAN with 10GBase-T with Intel® X557
|
| Graphics |
|
| |
| Input / Output |
|
| LAN |
- 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 2 USB 2.0 ports (2 headers),
- 2 USB 3.0 ports (2 rear)
|
| Video Output |
|
| TPM |
|
|
 |
| Expansion Slots |
|
| PCI-E |
- 1 PCI-E 3.0 x8
- 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink
|
| |
| System BIOS |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.1
- SMBIOS 3.1
- UEFI 2.6
- PCI FW 3.2
|
| |
| Management |
|
| Software |
- Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
| Power Configurations |
- +12V DC Power Input
- ACPI Power Management
|
| |
| PC Health Monitoring |
|
| Voltage |
- +1.5V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3 -fan status, Memory Voltages, Monitors CPU voltages, Supports system management utility, VBAT
|
| FAN |
- 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
|
| Temperature |
- Thermal Control for 3 Fan Connectors
|
| LED |
|
| Other Features |
- 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Node Manager Support, RoHS, UID
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 0°C ~ 60°C (32°F ~ 140°F)
|
| Non-Operating Temperature Range |
- -40°C - 85°C (-40°F - 185°F)
|
| Operating Relative Humidity Range |
- 10% ~ 85% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 10% ~ 95% (non-condensing)
|
|
