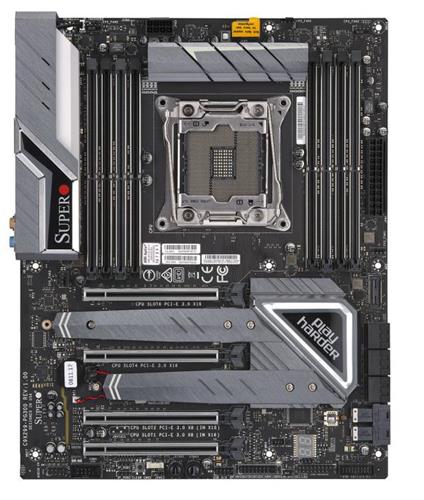

MBD-C9X299-PG300-O

US$ 1675.52
Agregar al Carrito
MBD-C9X299-PG300-O
Favoritos Consultar
Comparar

Product SKUs

MBD-C9X299-PG300
  • C9X299-PG300

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU
  • Intel® Core? i7 X-series Processor, Intel® Core? i9 Extreme X-series Processor, Intel® Core? i9 X-series Processor.
  • Socket R4 (LGA 2066) supported, CPU TDP support 165W TDP
  • Support Intel Skylake-X refresh CPU

System Memory

Memory Capacity
  • 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
Memory Type
  • 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V

On-Board Devices

Chipset
  • Intel® X299
SATA
  • 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
Audio
  • ALC 1220 HD Audio

Input / Output

LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
USB
  • 4 USB 2.0 ports (2 rear + 2 headers)
  • 6 USB 3.0 ports (4 rear + 2 headers)
  • 2 USB 3.1 ports (1 Type A, 1 Type C)
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots

PCI-E
  • 4 PCI-E 3.0 x16
  • ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2280, 2280/22110
  • Key: M-Key
  • M-Key for SSD and Optane

System BIOS

BIOS Type
  • UEFI 128Mb

Management

Software
  • SuperDoctor® 5, Watchdog

PC Health Monitoring

Voltage
  • +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
Socalo de CPU : 2066
Cantidad de Sockets : 1
LAN : Dual LAN with 10Gbase-T
Marca : SUPERMICRO
Memoria RAM maxima : 128GB
PCIEx16 : 4
