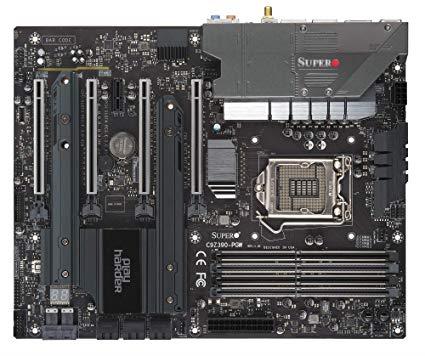

C9Z390-PGW-O

US$ 1553.66
Agregar al Carrito
MBD-C9Z390-PGW-O
Favoritos Consultar
Comparar




Product SKUs

MBD-C9Z390-PGW
  • C9Z390-PGW

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU
  • Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.
  • Single Socket LGA 1151 supported, CPU TDP support Up to 140W

System Memory

Memory Capacity
  • Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type
  • 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices

Chipset
  • Intel® Z390 Express
SATA
  • Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
Audio
  • ALC 1220 HD Audio
Graphics
  • Display port up to 1.2, HDMI up to 2.0a

Input / Output

SATA
  • 6 SATA3 (6Gbps) ports
USB
  • 2 USB 2.0 ports (2 headers, Type A))
  • 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers)
  • 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 header); *Internal USB3.1 Gen2 header is for one Type C deivce
Video Output
  • 2 DP (DisplayPort) ports, 1 HDMI port,
  • Display port up to 1.2, HDMI up to 2.0a
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots

PCI-E
  • 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 16/NA/8/8 or 8/8/16/NA or 8/8/8/8),
  • 1 PCI-E 3.0 x1
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
  • Form Factor: 2260/2280/22110, 2260/2280, 2230
  • Key: M-Key , M-Key , E-Key (RAID 0,1 support)
  • M.2-M1 port shares PCI-E link with U2-1 port;M.2-M2 port shares link with SATA port4 and port5; M.2-E1 port pre-installed one 802.1ac WiFi+BT5.0 module

System BIOS

BIOS Type
  • AMI 32Mb SPI Flash ROM
BIOS Features
  • ACPI 6.0

Management

Software
  • SuperDoctor® 5, Watchdog
System Mangement Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss

PC Health Monitoring

Voltage
  • +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM)
FAN
  • 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring
Temperature
  • CPU thermal trip support
LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion header
Socalo de CPU : 1151
Tipo de Memoria : DDR4 UDIMM
Cantidad de Sockets : 1
LAN : Dual LAN with 1Gbe LAN
Marca : SUPERMICRO
Memoria RAM maxima : 128GB
PCIEx16 : 4
PCIEx8 : 1
