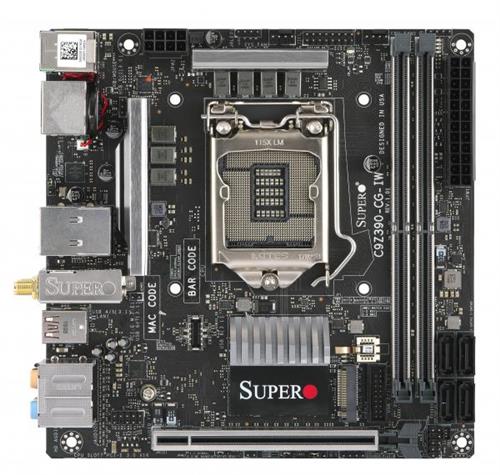

C9Z390-CG-IW-O

US$ 944.38
Agregar al Carrito
MBD-C9Z390-CG-IW-O
Favoritos Consultar
Comparar

Product SKUs

MBD-C9Z390-CG-IW
  • C9Z390-CG-IW

Physical Stats

Form Factor
  • Mini-ITX
Dimensions
  • 6.7" x 6.7" (17.02cm x 17.02cm)

Processor/Cache

CPU
  • Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.
  • Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP

System Memory

Memory Capacity
  • Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 64GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type
  • 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices

Chipset
  • Intel® Z390 Express
SATA
  • Intel® Z390 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
Audio
  • ALC 1220 HD Audio
Graphics
  • HDMI up to 2.0a, DP up to 1.2

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 3.0 ports (2 rear + 2 headers)
  • 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers)
  • 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 header)
Video Output
  • 1 HDMI port, 1 DP (DisplayPort) port,
  • HDMI up to 2.0a, DP up to 1.2
Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x16
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
  • Form Factor: 2260/2280, 2230
  • Key: M-Key , E-Key (RAID 0,1 support)
  • One M.2 (M-Key) on Top side and One M.2 (M-key)on back side

System BIOS

BIOS Type
  • AMI 32Mb SPI Flash ROM
BIOS Features
  • ACPI 6.0
  • SMBIOS 3.0 or later
  • UEFI 2.4

Management

Software
  • SuperDoctor® 5, Watchdog
System Mangement Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery
  • Keyboard Wakeup from Soft-Off
  • ACPI Power Management

PC Health Monitoring

Voltage
  • +1.1V, +12V, +3.3V, +5V, 1.05 (PCH), 2 fans with tachometer status monitoring, 3+2 Phase-switching voltage regulator, HT, VBAT
FAN
  • 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, PWM fan speed control
Temperature
  • CPU thermal trip support
LED
  • Suspend static indicator LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header, Voltage and Frequency Overclocking, WOL
Socalo de CPU : 1151
Tipo de Memoria : DDR4 UDIMM
Cantidad de Sockets : 1
Marca : SUPERMICRO
Memoria RAM maxima : 64GB
PCIEx16 : 1
