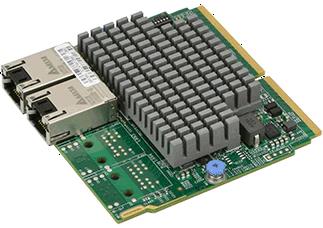

SIOM 2-port 10Gbase-T, Intel X550

US$ 761.06

AOC-MTG-I2T-O • Super I/O Module (SIOM) Form Factor • Intel® X550 10GbE controller. The second generation, 10GBase-T controller with integrated MAC and PHY. • Backward compatibility with existing 1000Base-T networks simplifies the transition to 10 GbE. • Dual RJ45 Connectors • Network Virtualization Offloads: VXLAN and NVGRE • VMDq and SR-IOV for virtualized Environment • Asset Management Features with thermal sensor • NC-SI for Remote Management • Supports RJ-45 Category-6 and 6A cables • RoHS compliant 6/6

Favoritos Consultar

Comparar

Características
Ficha técnica

Características

• General
   - Intel® X550 10GbE controller with integrated 10GBase-T copper
     PHYs
   - Super I/O Module (SIOM) Form Factor
   - Dual RJ45 ports

• I/O Features
   - MSI/MSI-X support
   - Low Latency
   - Multiple Queues ?V 64 Tx and Rx Per Port
   - Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4,
     IPv6) Capabilities
   - Tx TCP Segmentation Offload (IPv4, IPv6)
   - Receive and Transmit Side Scaling for Windows Environment
     and Scalable I/O for Linux Environments (IPv4, IPv6 and TCP/
     UDP)

• Virtualization Features
   - Multi-mode I/O Virtualization Operations
   - Network Virtualization Stateless Offload: VXLAN, NVGRE
   - Support for Virtual Machine Device Queues (VMDq)
   - 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port
   - Flexible Port Partitioning ?V 64 VFs per Port
   - PCI-SIG SR-IOV
   - 802.1q VLAN support

• Management Features
   - Preboot eXecution Environment (PXE) support
   - Remote Boot iSCSI and FCoE
   - IEEE 1588
   - Asset Management support on Supermicro® platforms
   - NC-SI for Remote Management

• Cable Support
   - RJ-45 Category-6 up to 55m; Category-6A up to 100m

• Power Consumption
   - AOC-MTG-i2T: Typical 11W, Maximum 13W

• Operating Conditions
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at 35°C

• Physical Dimensions
   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x
     D)

• Supported Platforms
   - Supermicro® motherboards with Super I/O Module slot
   - Supermicro® server systems with Super I/O Module slot
