CSE-826BE1C-R741JBOD

US$ 5639.92
Agregar al Carrito
CSE-826BE1C-R741JBOD
Favoritos Consultar
Comparar
Product SKUs

CSE-826BE1C-R741JBOD

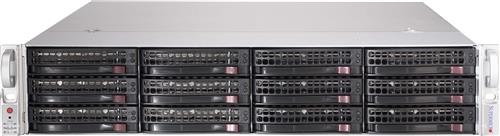

  • SuperChassis 826BE1C-R741JBOD

Form Factor

  • 2U JBOD storage chassis

Dimensions

Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Net Weight
  • 55 lbs (24.95 kg)
Gross Weight
  • 60 lbs (27.22 kg)
Packaging (W x H x L)
  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
  • Black

Drive Bays

  • 12 x 3.5" hot-swap HDD bays for JBOD solution

Qualified SAS Controllers

  • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
  • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller

Backplane

  • 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
LEDs
  • 1 Network Activity LEDs
Systems Cooling

Fans
  • 3 x 80x38mm hot-swap cooling fan(s)

System Monitoring

  • IPMI

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 740W Redundant Platinum Power Supply W/PMbus
Power Efficiency
  • 94%
Total Output Power and Input
  • 740W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • FCC class A
  • TUV/CB
  • UL/CUL
Bahias Hot-Swap : 9 - 24
Chasis Form Factor : 2U
Form Factor : 3.5''
Power Supply : 560W - 800W
