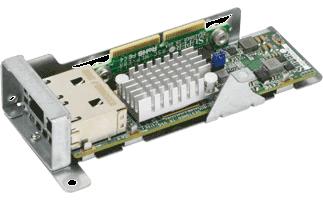

MicroLP 2-port 10GBase-T for 12-node MicroCloud, Intel X550

US$ 834.76
Agregar al Carrito
• Dual RJ45 Connectors

• MicroLP Form Factor

• PCI Express 3.0 x4 (8GT/s)

• Network Virtualization Offloads: VXLAN and NVGRE

• VMDq and SR-IOV for Virtualized Environment

• Ethernet Flow Director

• Jumbo Frames support up to 9 KB

• IEEE 802.3az Energy Efficient Ethernet (EEE)

• DMA coalescing

• Asset Management Features

• Supports RJ-45 Category-6 and 6A (10GBASE-T)

• RoHS compliant 6/6
Favoritos Consultar
Comparar

General

  •    Intel® X550 10GbE controller with integrated 10GBase-T copper PHYs
  •    MicroLP form factor
  •    PCI-E 3.0 x4 (8GT/s) interface
  •    Dual RJ45 connectors with speeds up to 10Gb/s per port
  •    Load balancing on multiple CPUs
  •    Intel® PROSet Utility for Windows Device Manager

I/O Features

  •   Two integrated interfaces operate at 10GBASE-T,
  •   1000BASE-T and 100BASE-TX
  •   MSI/MSI-X support
  •   128 Tx and Rx queues per port

Network Features

  •   Supports jumbo frames up to 9 KB
  •   IEEE 802.3az Energy Efficient Ethernet (EEE)

 Performance Features

  •    TCP/UDP segmentation offload
  •    IPv6 support for IP/TCP and IP/UDP receive checksum offload
  •    Intel® Flow Director
  •    Receive-Side Scaling (RSS)
  •    TCP Receive Side Coalescing (RSC)
  •    Supports Fibre Channel over Ethernet (FCoE)
  •    DMA coalescing
Interfaz : PCI-E
Marca : SUPERMICRO
Puertos : 2 x RJ45
Velocidad : 10 GBPS
